Hook and Loop Dots on Roll – 30 mm roll, Black
30 mm roll black piece, 3.0 N/25 mm peel, ±0.3 mm die-cut tolerance.
| Construction | Hook and Loop Dots on Roll |
| Width | 30 mm |
| Profile | roll |
| Colour | Black |
| Minimum order | 10,000 pcs |
Not ready to ask for a price? Just ask a question — an engineer replies, not a sales script.
Specification
| Construction | Hook and Loop Dots on Roll |
|---|---|
| Width | 30 mm |
| Profile | roll |
| Colour | Black |
| Weight / piece | 0.3 g |
| Peel strength | 3.0 N/25 mm |
| Shear strength | 12 N/cm² |
| Cycle life | 5,000 cycles |
| Service temperature | -20 °C to 80 °C |
| Pieces per carton | 500 |
| Minimum order | 10,000 pcs |
| Production lead time | 15-25 days after sample approval |
| Packing | Poly bag + carton, palletised for LCL |
| Certification | REACH, RoHS; OEKO-TEX on request |
What makes it different
- 30 mm width held to ±0.5 mm across the full run
- 3.0 N/25 mm peel measured on every lot
- Each piece weighs about 0.3 g; 500 pieces to a carton.
Other sizes in this construction
Same build, different width or length. Mixed sizes in one carton are fine.
| Size | Colour | MOQ |
|---|---|---|
| 35 mm | Blue | 10,000 pcs |
| 45 mm | Beige | 10,000 pcs |
| 45 mm | Blue | 10,000 pcs |
| 25 mm | Grey | 10,000 pcs |
| 10 mm | Blue | 10,000 pcs |
Need a custom width or die profile?
Send a drawing and we will confirm tooling cost and tolerance before you commit.
Talk to an engineerAbout this product
Produced to the same construction on every run, which is why converters reorder instead of resampling. Most orders go into furniture trim, panel fixing and mid-weight strap assemblies. Minimum order is 10,000 pcs.
Each piece weighs about 0.3 g; 500 pieces to a carton. Tolerance on width is ±0.5 mm, on die-cut profile ±0.3 mm.
Ordering and shipping
- Sold by the roll, carton or pallet — mixed widths allowed.
- EXW Xiamen, FOB or CIF to your port.
- T/T 30% deposit, balance against copy of B/L.
- Sample orders ship by courier in 7 days.
Choosing this construction
Order by the profile, not the diameter: a round coin suits a drilled or moulded seat, a square resists rotation better on a flat panel, and a custom die-cut shape is what you specify when the part has to be applied the same way every time without a jig. Tooling is a one-off and typically takes 7–10 working days.
Common questions
What is 30 mm hook and loop used for?
At 30 mm this construction is normally specified for furniture trim, panel fixing, mid-weight strap assemblies and equipment covers. The width does not change the peel per unit width much, but narrower tape engages fewer hooks at the edge, which is where peeling starts — so if the joint opens repeatedly, go up one width rather than up one grade.
Kiss-cut or loose parts?
Kiss-cut keeps the parts on a continuous liner for dispensers and pick-and-place heads. Through-cut gives loose parts in a bag, which is cheaper and fine for manual assembly. Tell us which line you are feeding and we will quote the matching format.
What tolerance can you hold?
±0.3 mm on the cut profile and ±0.5 mm on position within the web. Tighter than that is a conversation, not a catalogue item. Watch the adhesive bleed as well: a soft acrylic can creep 0.2 mm past the cut edge in warm storage.
What is the minimum order and lead time?
Minimum order for this item is 10,000 pcs. Production runs 15–25 days after sample approval, with samples typically shipped in 7 days.
More in Dots, Coins & Die-Cut Shapes
Dots, Coins & Die-Cut Shapes
Hook and Loop Dots on Roll – 35 mm roll, Blue
35 mm roll blue piece, 3.1 N/25 mm peel, ±0.3 mm die-cut tolerance.
MOQ 10,000 pcs
Dots, Coins & Die-Cut Shapes
Self-Adhesive Hook and Loop Squares – 25 mm square, Red
25 mm square red piece, 3.0 N/25 mm peel, ±0.3 mm die-cut tolerance.
MOQ 10,000 pcs
Dots, Coins & Die-Cut Shapes
Custom Die-Cut Hook and Loop Part – 45 mm oval, Red
45 mm oval red piece, 3.2 N/25 mm peel, ±0.3 mm die-cut tolerance.
MOQ 10,000 pcs
Dots, Coins & Die-Cut Shapes

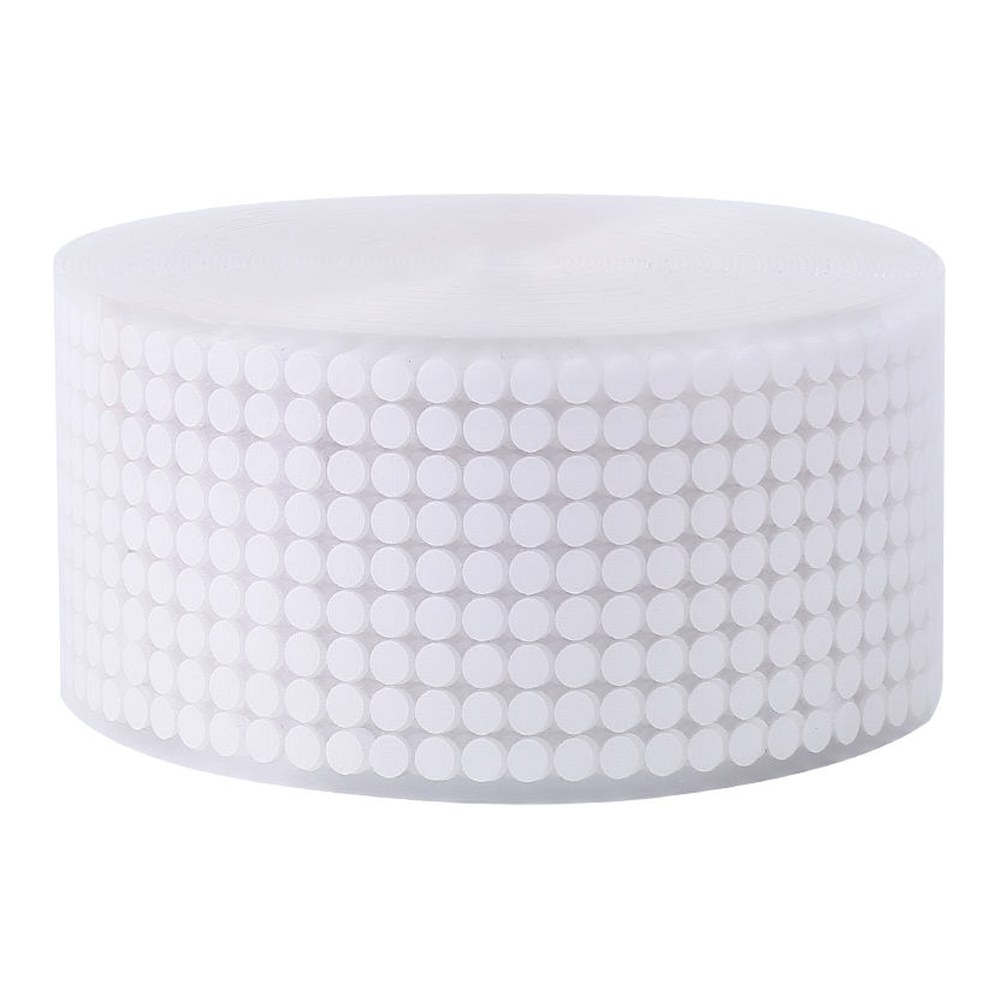

Self-Adhesive Hook and Loop Coins – 50 mm round, White
