Injection-Molded Hook Fastener – Thin Profile – 20 mm x 25 m, Grey
20 mm wide, 25 m per roll, 4.1 N/25 mm peel, grey.
| Construction | Injection-Molded Hook Fastener |
| Width | 20 mm |
| Length | 25 m |
| Colour | Grey |
| Minimum order | 200 rolls |
Not ready to ask for a price? Just ask a question — an engineer replies, not a sales script.
Specification
| Construction | Injection-Molded Hook Fastener |
|---|---|
| Width | 20 mm |
| Length | 25 m |
| Colour | Grey |
| Weight / roll | 0.15 kg |
| Peel strength | 4.1 N/25 mm |
| Shear strength | 16 N/cm² |
| Cycle life | 20,000 cycles |
| Service temperature | -20 °C to 90 °C |
| Rolls per carton | 146 |
| Minimum order | 200 rolls |
| Production lead time | 15-25 days after sample approval |
| Packing | Poly bag + carton, palletised for LCL |
| Certification | REACH, RoHS; OEKO-TEX on request |
What makes it different
- 20 mm width held to ±0.5 mm across the full run
- 4.1 N/25 mm peel measured on every lot
- Each 25 m roll weighs 0.15 kg; 146 rolls to a carton.
Other sizes in this construction
Same build, different width or length. Mixed sizes in one carton are fine.
| Size | Colour | MOQ |
|---|---|---|
| 16 mm x 25 m | White | 200 rolls |
| 20 mm x 25 m | White | 200 rolls |
| 20 mm x 25 m | Black | 200 rolls |
| 25 mm x 25 m | White | 200 rolls |
| 38 mm x 25 m | Grey | 200 rolls |
| 30 mm x 25 m | White | 200 rolls |
| 16 mm x 25 m | Black | 200 rolls |
Need a custom width or die profile?
Send a drawing and we will confirm tooling cost and tolerance before you commit.
Talk to an engineerAbout this product
Produced to the same construction on every run, which is why converters reorder instead of resampling. Most orders go into general purpose closures, bags, packaging and display mounting. Minimum order is 200 rolls.
Each 25 m roll weighs 0.15 kg; 146 rolls to a carton. Tolerance on width is ±0.5 mm, on die-cut profile ±0.3 mm.
Ordering and shipping
- Sold by the roll, carton or pallet — mixed widths allowed.
- EXW Xiamen, FOB or CIF to your port.
- T/T 30% deposit, balance against copy of B/L.
- Sample orders ship by courier in 7 days.
Choosing this construction
Specify against the standard your customer audits, not against the word "specialty". FMVSS 302, UL94 V-2 and inherent aramid are three different tests with three different price points, and only one of them is the one you need.
Common questions
What is 20 mm hook and loop used for?
At 20 mm this construction is normally specified for general closures, bags, packaging, display mounting and low-load bundling. The width does not change the peel per unit width much, but narrower tape engages fewer hooks at the edge, which is where peeling starts — so if the joint opens repeatedly, go up one width rather than up one grade.
Which flame standard applies to my product?
Car interiors are tested to FMVSS 302; electrical and electronic enclosures to UL94 V-2; protective clothing and welding environments normally need inherently flame-resistant meta-aramid rather than an additive. Tell us the standard your customer audits and we will quote the construction that meets it — and only that one.
Do you supply the test report with the goods?
Yes, issued against the production lot, naming the standard, the lab and the result. If a supplier offers a generic PDF with no lot reference, it will not survive an audit.
What is the minimum order and lead time?
Minimum order for this item is 200 rolls. Production runs 15–25 days after sample approval, with samples typically shipped in 7 days.
More in Specialty & High-Performance
Specialty & High-Performance

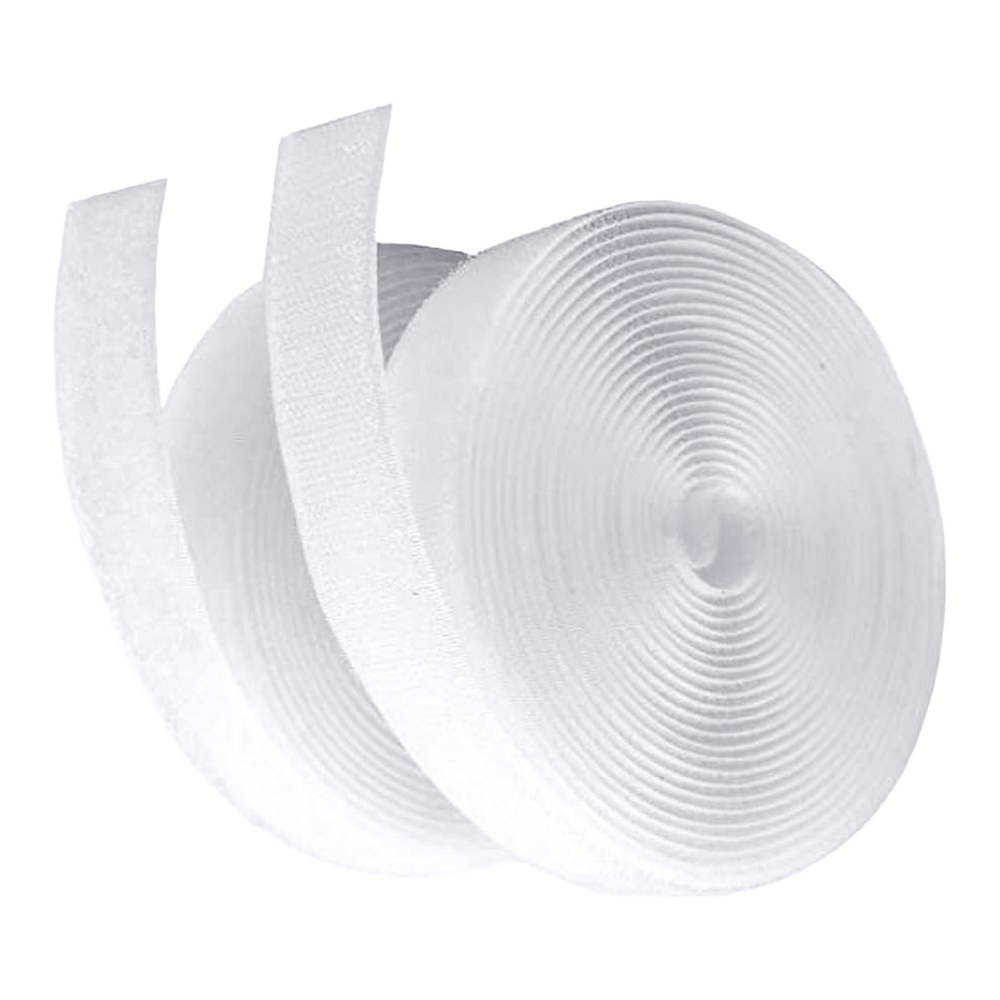

UV-Stabilised Outdoor Hook and Loop – 50 mm x 25 m, White
